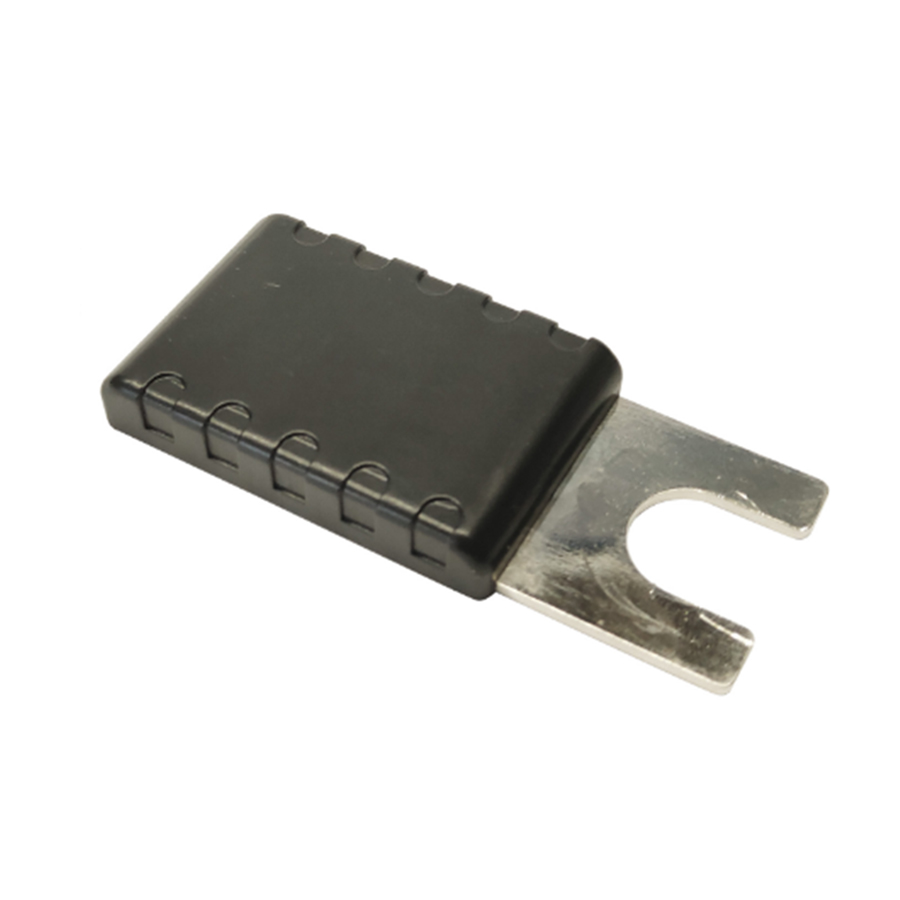

The tuning fork type ceramic anti-metal temperature measurement label is a temperature measurement label specially designed for complex environments such as electric copper medals. It has the characteristics of wide temperature measurement range, high precision, long reading distance, and easy installation. It is especially suitable for various metal environments. The temperature measurement application can be easily applied to scenarios such as electric power, energy, and special process production lines.
Application: Real-time monitoring of online temperature of power grid, including real-time monitoring of online temperature of key nodes of high-voltage substation and medium and low-voltage power distribution facilities; status monitoring of high-load IT equipment, including tracking of heating status of servers in IDC computer room; tracking of single product of production line including high-temperature process and quality management.
| Serial number | Name | Parameters |
| 1 | Product Application | Real-time monitoring of online temperature of power grid, including real-time monitoring of online temperature of key nodes of high-voltage substation and medium and low-voltage power distribution facilities;
High-load IT equipment status monitoring, including tracking the heating status of servers in the IDC computer room; Product line tracking and quality management for high-temperature processes. |
| 2 | Label protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
| 3 | frequency | 902～928MHz |
| 4 | Reading distance | 3.2 meters |
| 5 | App background | Metal Surface Optimization |
| 6 | Chip type | LTU21 |
| 7 | Memory Configuration | EPC: 96bit; TID: 64bits; User: 288 bits (the first 192bits can be read and written, and the rest are read-only) |
| 8 | Long-term working temperature | -25 degrees to +125 degrees |
| 9 | Long-term storage temperature | -25 degrees to +225 degrees |
| 10 | IP level | IP65 |
| 11 | Size (mm) | 75*34*6 |
| 12 | Fall | 1 meter 200 times (plastic floor) |
| 13 | Exterior painting | Black |
