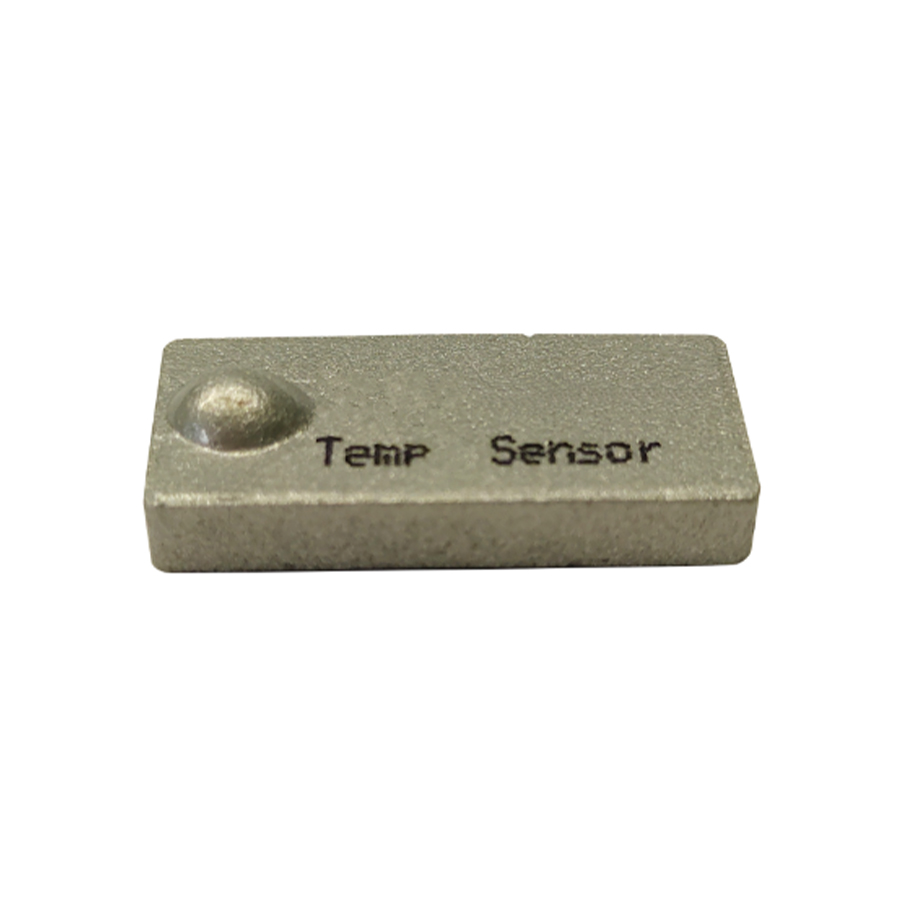

Ceramic anti-metal temperature measurement label is a small special temperature measurement label specially designed for metal and other complex environments. It has the characteristics of wide temperature measurement range, high precision, long reading distance, small size and convenient installation. It is especially suitable for various metals. The temperature measurement application in the environment can be easily applied to scenarios such as electric power, energy, and special process production lines.

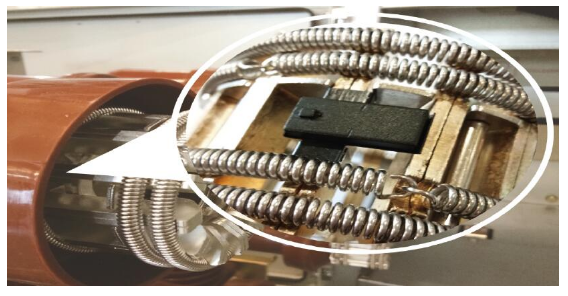

Application: Real-time monitoring of online temperature of power grid, including real-time monitoring of online temperature of key nodes of high-voltage substation and medium and low-voltage power distribution facilities; status monitoring of high-load IT equipment, including tracking of heating status of servers in IDC computer room; temperature monitoring of rubber vulcanization process, including tire rubber Real-time monitoring and tracking of single product temperature during vulcanization process; other production line single product tracking and quality management including high temperature process.
| Serial number | Name | Parameters |
| 1 | Product Application | Real-time monitoring of online temperature of power grid, including real-time monitoring of online temperature of key nodes of high-voltage substation and medium and low-voltage power distribution facilities;
High-load IT equipment status monitoring, including tracking the heating status of servers in the IDC computer room; Temperature monitoring of rubber vulcanization process, including real-time monitoring and tracking of single product temperature during tire rubber vulcanization process; Product line tracking and quality management for high-temperature processes. |
| 2 | Label protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
| 3 | frequency | 902～928MHz |
| 4 | Reading distance | 1.5 meters |
| 5 | App background | Metal Surface Optimization |
| 6 | Chip type | LTU21 |
| 7 | Memory Configuration | EPC: 96bit; TID: 64bits; User: 288 bits (the first 192bits can be read and written, and the rest are read-only) |
| 8 | Long-term working temperature | -25 degrees to +125 degrees |
| 9 | Long-term storage temperature | -25 degrees to +225 degrees |
| 10 | IP level | IP65 |
| 11 | Size (mm) | 19*9*3 |
| 12 | Fall | 1 meter 200 times (plastic floor) |
| 13 | Exterior painting | Black |
