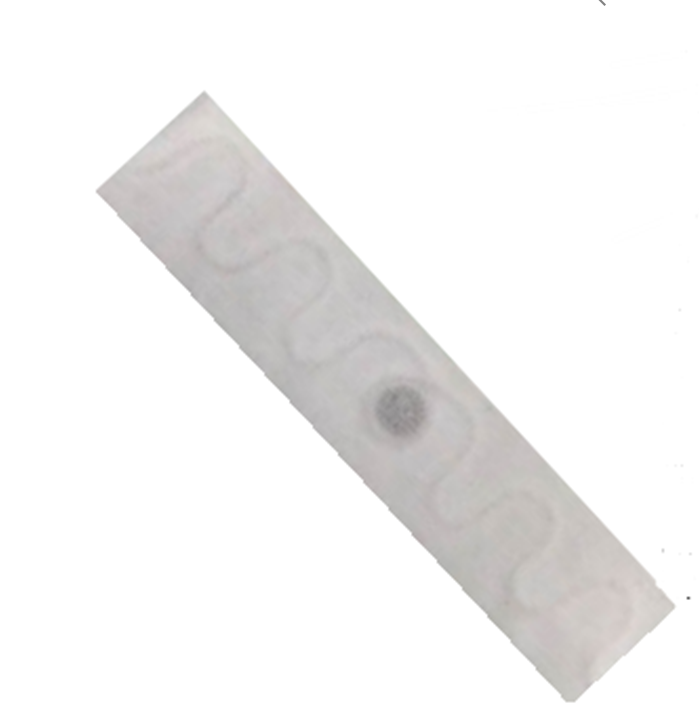

This product’s water-washable electronic tag fully meets the actual application requirements with its high reading rate and long recognition distance. It is a label that can really meet the needs of industrial washing for more than 200 times
Washable soft label is a safe, non-toxic, durable, green and environmentally friendly electronic label tailored for clothing management, personnel management, industrial washing, cloth printing and dyeing industry, washing industry, medical logistics and other professional fields. It can be used in other high temperature, high humidity, high labor intensity and other working occasions.
| Serial number | Name | Parameters |
| 1 | Chip | NXP Ucode7/7M (custom chips are also available) |
| 2 | Chip storage | EPC128bits |
| 3 | Color | white |
| 4 | Material | Textiles |
| 5 | Read and write performance | Read and write |
| 6 | carrier frequency | 840-960Mhz |
| 7 | Erase life | 100000 times |
| 8 | Short-term temperature resistance | 80°C for 60 minutes
120°C for 10 minutes 150°C for 4 minutes 180°C for 5 seconds |
| 9 | Reading and writing distance | 0-8M (depending on different modules and antennas) |
| 10 | Usage period | 200 times of industrial washing, data storage for 20 years |
| 11 | Working temperature | -25°C to +110°C |
| 12 | Storage temperature | -40°C to +120°C |
| 13 | Agreement | ISO 18000-6C, EPC CLass1 Gen2 |
| 14 | Specifications | 70*15*1.4mm (size can be customized) |
| 15 | Installation method | Sealing installation |
| 16 | Polarization direction | Linear polarization |
