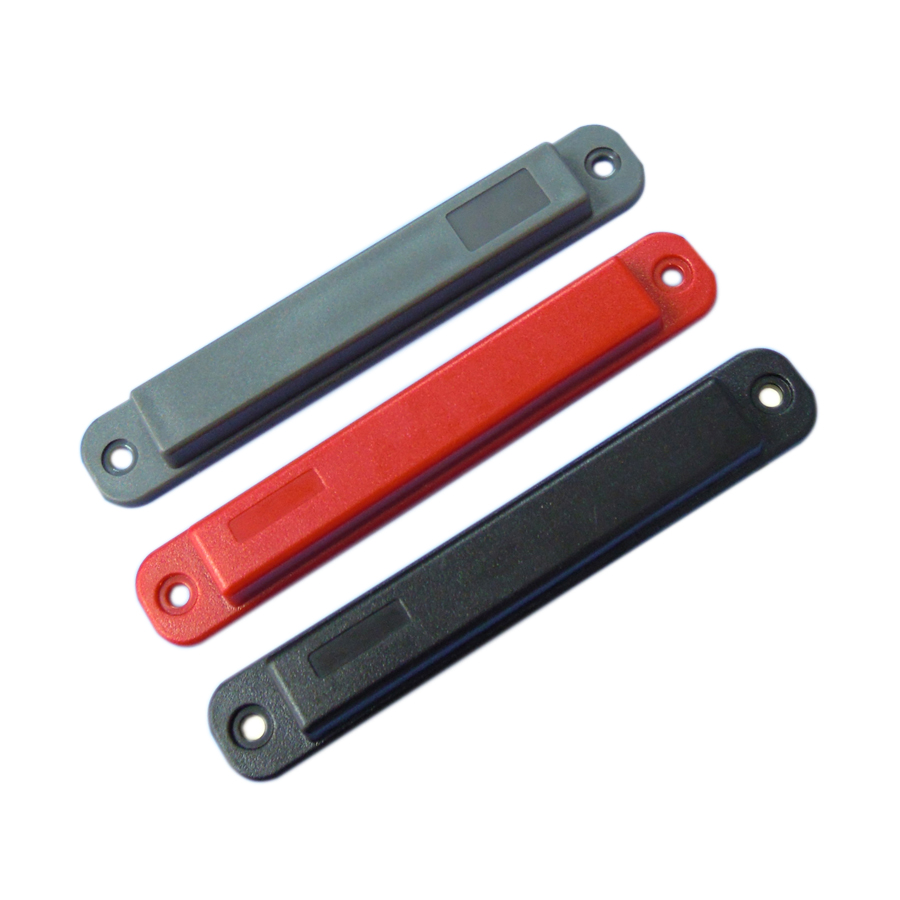

TM1352112 UHF RFID anti-metal electronic tag

1352112 is a new general-purpose UHF anti-metal tag, which is divided into the type for metal surface and the type for non-metal surface.

  • Introduction
  • Specification
  • Appearance
  1. The surface of the product is smooth and flat, and any label with printing or printing content can be pasted;
  2. Exquisite screen printing can also be done on the surface of the label;
  3. The surface of the product can be laser coded;
  4. On the surface of black products, laser can be used to print white variable one code, variable two codes, and white LOGO;
  5. On the surface of the white product, laser can be used to print black variable one code, variable two code, and black LOGO;
  6. The product has a long reading distance;
  7. The product installation method is flexible and convenient;

Product Application

  1. Storage shelf management;
  2. Storage locomotive equipment management;
  3. IT facility chassis management;
  4. Large and medium metal container management;
  5. Power box, power facility management;
  6. Indoor and outdoor office equipment and facility management with metal enclosures;
  7. Building wall or column management (built-in);
  8. Personnel inspection management;
  9. Management of public facilities such as street lamps and traffic light posts;
  10. Large, medium-sized fluid valve or pipeline management;
Serial number Name Parameters
1 Main material ABS
2 Color Gray black
3 frequency 860~960MHz (Compatible with American Standard)
4 Chip type Alien H3 chip
5 Memory Configuration EPC: 96bit; User: 512bit
6 Metal surface reading distance Fixed (8dBi): readable up to 8 meters away;
7 Data storage 10 years
8 Warranty 1 year
9 Tab weight 10 grams
10 Installation method Standard: screws, rivets

Optional: super glue (not standard), back glue (not standard,

optional)

11 Long-term working temperature -25 degrees to +70 degrees
12 Long-term storage temperature -30 degrees to +70 degrees
13 IP level IP68
14 Size 135*21*12.5mm
15 Positioning hole size The diameter of the positioning hole for product fixing is 5mm

Positioning hole center spacing 120mm

19 Test distance 5~12m on metal

*The above tests are the test results under the standard conditions of the laboratory. In the actual use environment, due to many and complex influencing factors, the final condition of the product may be different from the environment in which it is used.
