This product applies the latest material science to RFID asset management, logistics labels, and valuable enterprise archive assets. TC series ceramic tags fully meet the actual application requirements with their moderate shape, high reading rate, and long recognition distance.

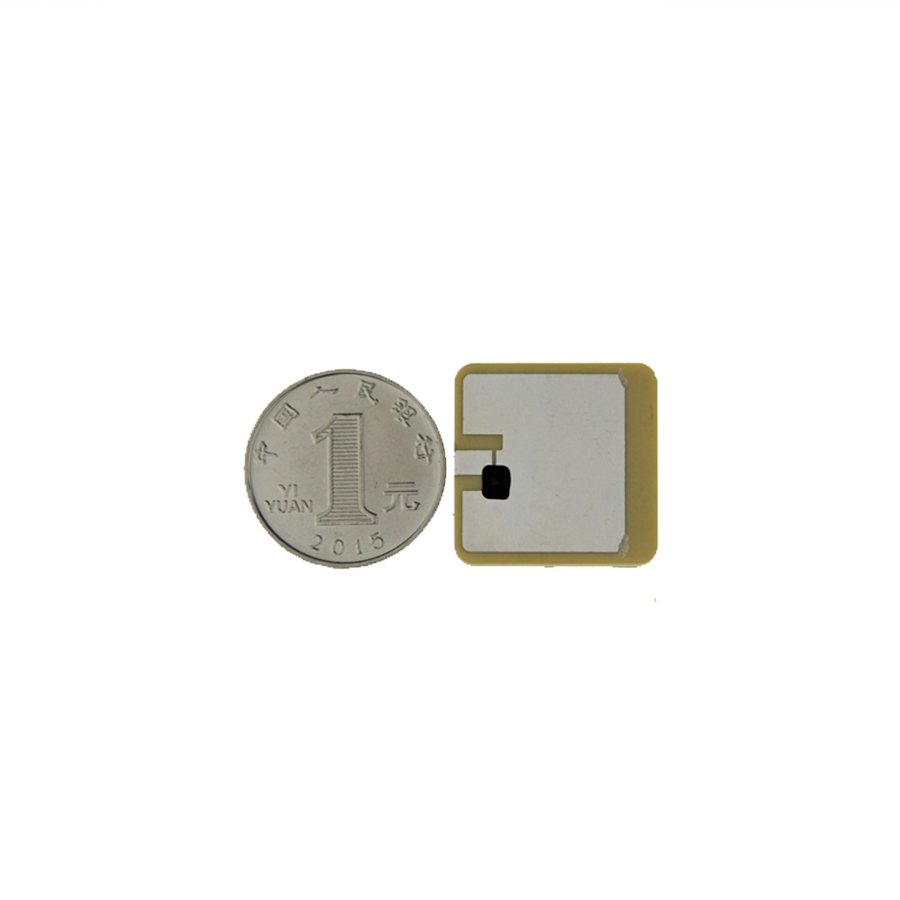

TC2525 adopts high-strength and wear-resistant labels, and the protection level reaches IP65. It can be fixed on pallets, metal trays, material boxes and other carriers in a variety of ways, and can be designed as an embedded model type, which can be integrated with the carrier to meet the harsh environment of petrochemical and logistics fields.
| Serial number | Name | Parameters |
| 1 | Product Application | warehousing asset management;
Indoor equipment management; IT asset management; Smart grid identification; bank asset management; Telecom asset management; |
| 2 | frequency | 920～925MHz (Compatible with American Standard) |
| 3 | Chip type | Alien H3 |
| 4 | Memory Configuration | EPC: 96bit; User: 512bit |
| 5 | Metal surface reading distance | Fixed (ERP=2W): greater than 6 meters |
| 6 | Label housing material | Ceramics |
| 7 | Installation method | Superglue or double-sided tape installation |
| 8 | Long-term working temperature | -35 degrees to +85 degrees |
| 9 | Long-term storage temperature | -40 degrees to +85 degrees |
| 10 | IP level | IP65 |
| 11 | Size | 25x 25 x 3.7mm |
| 12 | High and low temperature alternating test | Pass |
| 13 | Product options | Surface screen printing,
surface coding, Chip EPC pre-writing, surface paint, 3M 300LSE adhesive on the back |
