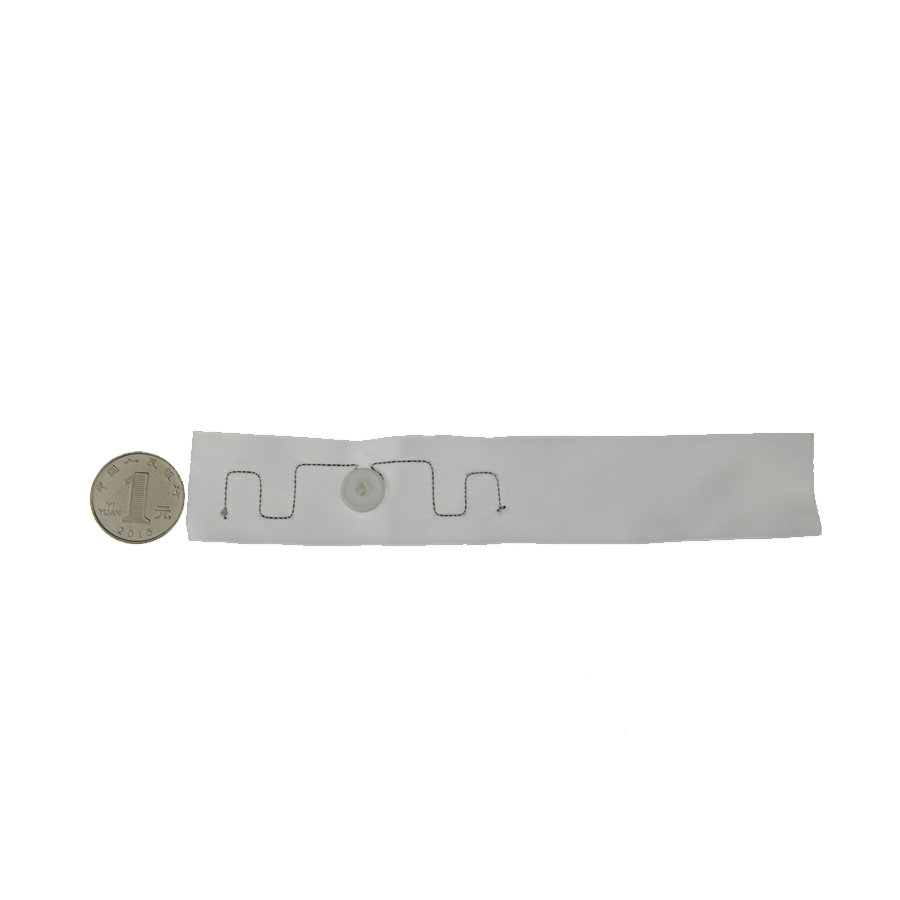

This product’s water-washable electronic tag fully meets the actual application requirements with its high reading rate and long recognition distance.
The washed button label is mainly used in clothing sales and production management. It can be used in professional fields such as cloth printing and dyeing industry, washing industry and hotels. It is a safe, non-toxic, wear-resistant and durable, green and environmentally friendly electronic label. It can be used in other high temperature, high humidity, high labor intensity and other working occasions.
| Serial number | Name | Parameters |
| 1 | Chip | Alien H3/ Alien H4 |
| 2 | Product length | 54mm |
| 3 | Product width | 17.5mm |
| 4 | Substrate material | Cloth |
| 5 | Bucket length | 130mm |
| 6 | Duct Width | 30mm |
| 7 | Button size | Φ17mm |
| 8 | Working temperature/humidity | -50℃ – 85℃ / 8% – 95% RH |
| 9 | Temperature resistant when dry cleaning | 85℃ (60 minutes) |
| 10 | Temperature resistance when ironing | 200°C (<1 minute) |
| 11 | Rewritable times | 100,000 times@25℃ |
| 12 | Chemical Resistance | Cleansers, softeners, bleach (oxygen/chlorine), alkali |
| 13 | Number of washing cycles | 100 times |
| 14 | Working frequency | 860MHz – 960MHz |
| 15 | Reading and writing distance | >4 meters |
| 16 | Support standards | ISO/IEC 18000-6C and EPC global Class 1 Gen 2 |
| 17 | EPC storage area | 96bits / 128bits |
| 18 | User Storage | 512bits / 128bits |
