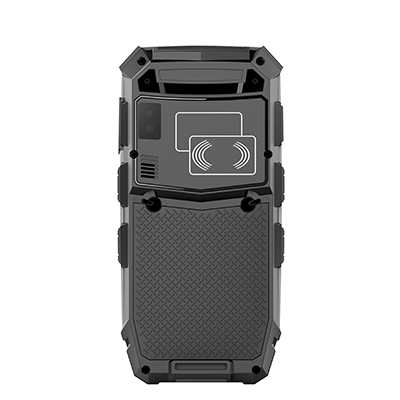

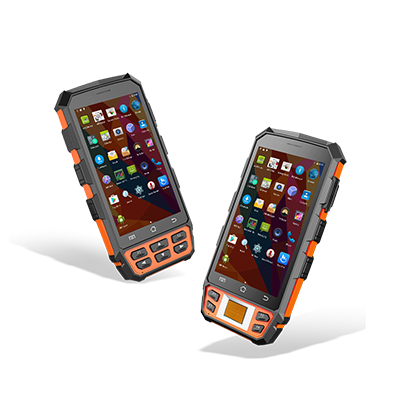

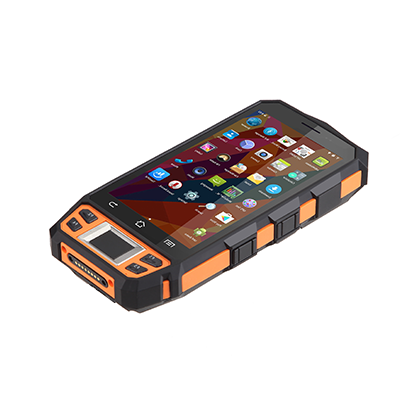

P6050 is equipped with Android 7.0 operating system, 5-inch IPS high-definition screen with a resolution of up to 720*1280, a quad-core 64-bit Coretex-A53, and a main frequency of 1.3GHz. It is an intelligent industrial grade that fully supports various IoT frequency bands and application functions Handheld Terminal.
P6050 can be widely used in various industries of the Internet of Things, such as: logistics and transportation industry, electric power industry, commodity traceability industry, sales management industry, warehouse management industry, commodity anti-counterfeiting industry, anti-counterfeiting anti-counterfeiting industry, asset management industry, inspection and patrol industry, etc. Wait. With the main goal of realizing the special needs of industry customers, relying on flexible and customizable modular combinations, it solves customers’ core problems and provides a solid foundation for customers’ mobile Internet of Things applications.
| Basic parameters | |
| Overall size | 170*85*23±2mm |
| Complete machine weight | 380g |
| Display | 5-inch IPS high-definition screen, resolution 720*1280 |
| touch screen | Corning Gorilla III industrial-grade multi-touch capacitive screen |
| Expansion Slot | 1 SIM card slot, 2 PSAM card slots and 1 Micro SD(TF) card slot |
| Communication interface | High-speed USB2.0 device interface 3.5 hybrid charging port |
| Audio | Support voice broadcast |
| Indicator light | Network indicator, charging indicator |
| Keyboard | Scan key, function key |
| Camera | Rear 8 million pixel camera with flash and auto focus |
| Flashlight | Low power consumption LED lighting, emergency use |
| GPSNavigation | Built-in GPS global positioning system, error range ±5m |
| Performance parameters | |
| CPU | Quad-core 64-bit Coretex-A53, main frequency 1.3GHz |
| Memory Capacity | RAM: 2GB ROM: 16GB |
| operating system | Android7.0 |
| Extended memory | Support 128GB Micro SD card |
| Data communication | |
| 4G | TD-LTEBand38/39/40/41FDD-LTEBand1,2,3,4,7,17,20 |
| 3G | WCDMA(850/1900/2100MHz); |
| 2G | GSM/GPRS/Edge (850/900/1800/1900MHz) |
| WIFI | 2.4G/5G dual-band, compliant with IEEE802.11a/b/g/n |
| Bluetooth | Compliant with Bluetooth4.0 |
| Barcode collection (optional) | |
| 1D barcode | |
| One-dimensional laser scanning module | HoneywellN431X/Others |
| Support one-dimensional barcode type | Code39, Code93, Code128, Code bar, EAN-13, EAN-8, UPC-A, UPC-E, ITF14, UCC/EAN-128, ITF25, Matrix25, EAN-128, ISBN, etc. |
| 2D barcode | |
| 2D scanning engine | Honeywell-6603/Other |
| Support 2D barcode type | PDF417,MicroPDF417,Composite,RSS,TLC-39,Data matrix,QR code,Micro QR code,Aztec,Maxi Code,Postal Codes,US Post Net,US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal, etc. |
| Ultra High Frequency(UHF)Indicators | |
| RFID | Working frequency: 840-960MHz (customized according to the required frequency band)
Support agreement: EPC C1 GEN2/ISO 18000-6C Output power: 20dBm-30dBm Recognition distance: 0-5 meters |
| Working environment | |
| Operating temperature | -20℃～50℃ |
| Storage temperature | -20℃～70℃ |
| relative humidity | 5%～95% non-condensing |
| Protection level | Host IP65 (only for the host, not including the extended RFID back clip) |
| Battery Performance | |
| Battery Capacity | 4500mAh lithium polymer battery |
| Standby time | Off wireless communication and other functions can stand by for 320 hours |
| Charging time | less than 4.5 hours |
