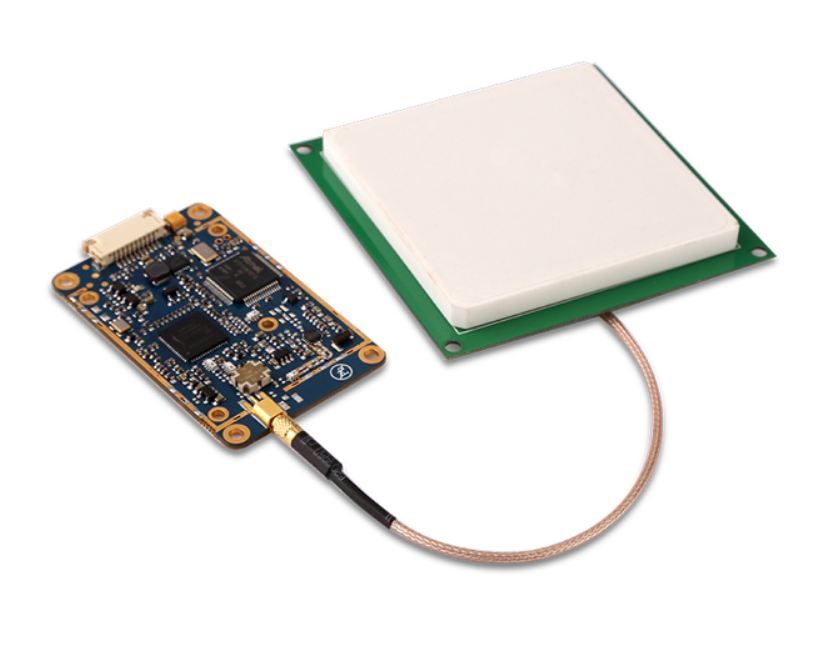

RFID UHF four-channel read-write module M2240

M2240 is a high-performance UHF RFID read-write module developed by Xunyuan Technology with great concentration. It has 4 antennas and high-speed polling. The power and time can be configured separately to meet different coverage requirements. The maximum output power can reach +30dBm. With 8dBi gain antenna, the reading distance can reach 20m. It has the advantages of industry multi-tag algorithm, module self-adaptation, and fast identification of tags. The power consumption of single tag reading is lower than 700mA. The second speed can be stably up to 800 times per second (in a specific mode).

According to the needs of customers, the tag can be encrypted and set, and other readers will be garbled when they read it again, which increases the confidentiality. This module is a four-channel UHF RFID read-write module designed based on IMPINJ’s second-generation RF chip R2000. It is a high-performance UHF RFID read-write module designed for highly challenging RFID application environments.

This module has been verified by a large number of tests and long-term uninterrupted work (180 consecutive days), and its stability and reliability can fully meet its use requirements. At the same time, M2240 is equipped with four MMCX antenna interfaces and provides a standardized SDK development kit with rich functions. Users can develop high-performance reader devices according to project requirements in a short period of time.

The M2240 module is suitable for warehousing, logistics, clothing, production line management and other application environments that require high RFID intensive reading performance and are more challenging.
