The new generation of high-performance desktop UHF RFID reader embodies 10 years of RFID research and development experience of Xunyuan Technology. The reader is equipped with a new generation of UHF M2210/M2100 modules developed by our company. The desktop reader is an RFID reading and writing device designed to cooperate with users in the background or management center for card issuance management applications. It is suitable for data initialization of tags in RFID integrated systems, tag data modification, and tag function testing applications. It can also be used independently As a short-range RFID reader application, it has stable performance and long reading distance among similar products, and supports EPC global UHF Class1 GEN2/ISO 18000-6C air interface protocol.

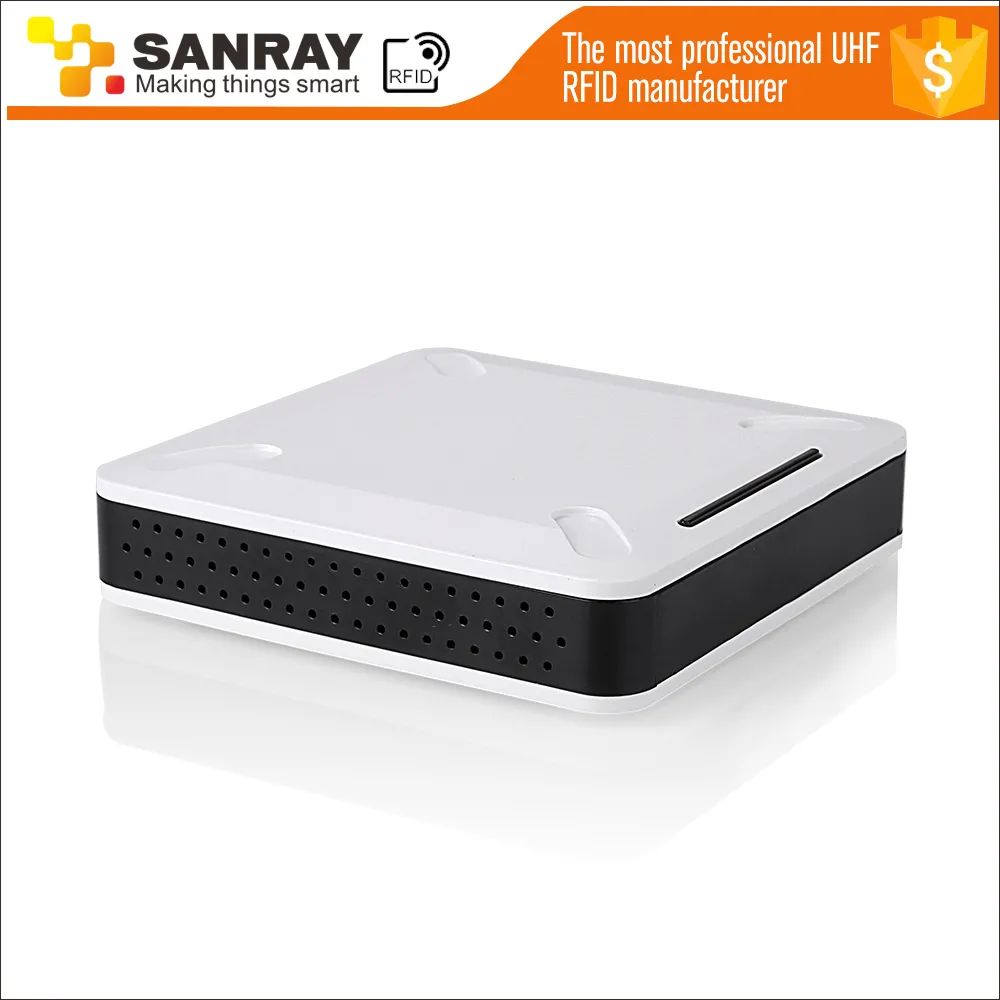

The F5002 is designed with a plastic case, which is compact, lightweight, and durable. The device has a variety of communication interfaces for quick and easy connection with the host. The reading and writing speed of tags is fast, especially suitable for desktop application requirements. The product adopts software fault tolerance and hardware anti-interference design, which can work continuously and stably for a long time in a relatively harsh working environment.
This series currently has 2 main products: F5002-H (H series with Xunyuan M2210 module), F5002-L (L series with Xunyuan M2100 module)
| Serial number | Name | Parameters |
| 1 | Working Voltage | DC 12V |
| 2 | Standby current | H series: <120mA
L series: <120mA |
| 3 | Working current | H series: <2.0A
L series: <1.0A |
| 4 | Operating temperature | -25℃～+65℃ |
| 5 | Working Humidity | 5%RH-95%RH (no condensation) |
| 6 | Storage temperature | -40℃～+85℃ |
| 7 | Label Agreement | EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
| 8 | Working frequency band | 840～960 MHz |
| 9 | Support work area | China 2, USA, Japan, Korea (customizable: China 1, Europe) |
| 10 | Output power | Software adjustable:
H series: step interval 1.0dB, +5dBm-+30dBm L series: step interval 1.0dB, +5dBm-+25dBm |
| 11 | Output power flatness | ±0.2dB |
| 12 | Receiving Sensitivity | H series: -82dBm
L series: -62dBm |
| 13 | RF port standing wave | ≤1.5 |
| 14 | Reading distance | F5002-H≥0.8m
F5002-L≥0.3 meters The reading distance is related to the tag type, transmission power and application environment |
| 15 | Multi-label reading | H series: ≥800tags/s
L series: ≥120tags/s |
| 16 | Interface communication rate | 115200bps |
| 17 | Operating temperature monitoring | Support |
| 18 | Return Signal Received Strength RSSI | Support
|
| 19 | Antenna Type | Near Field Antenna |

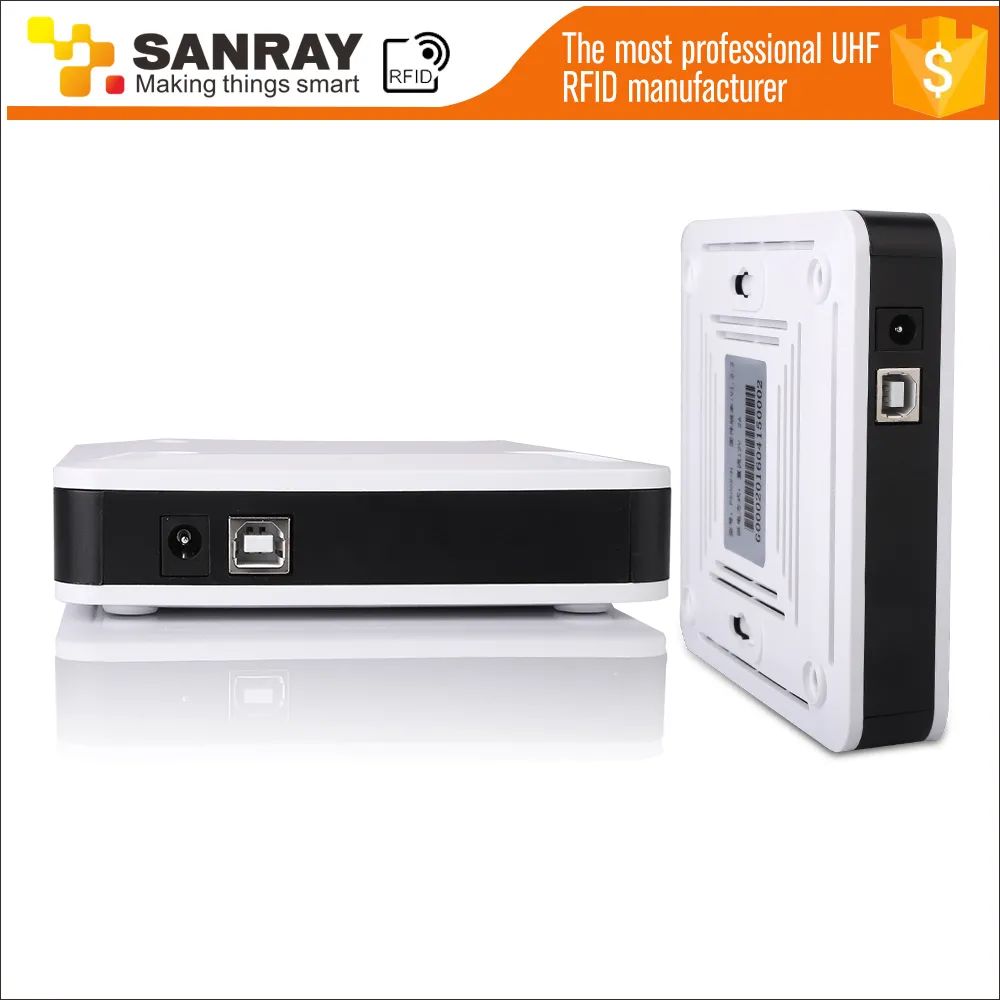

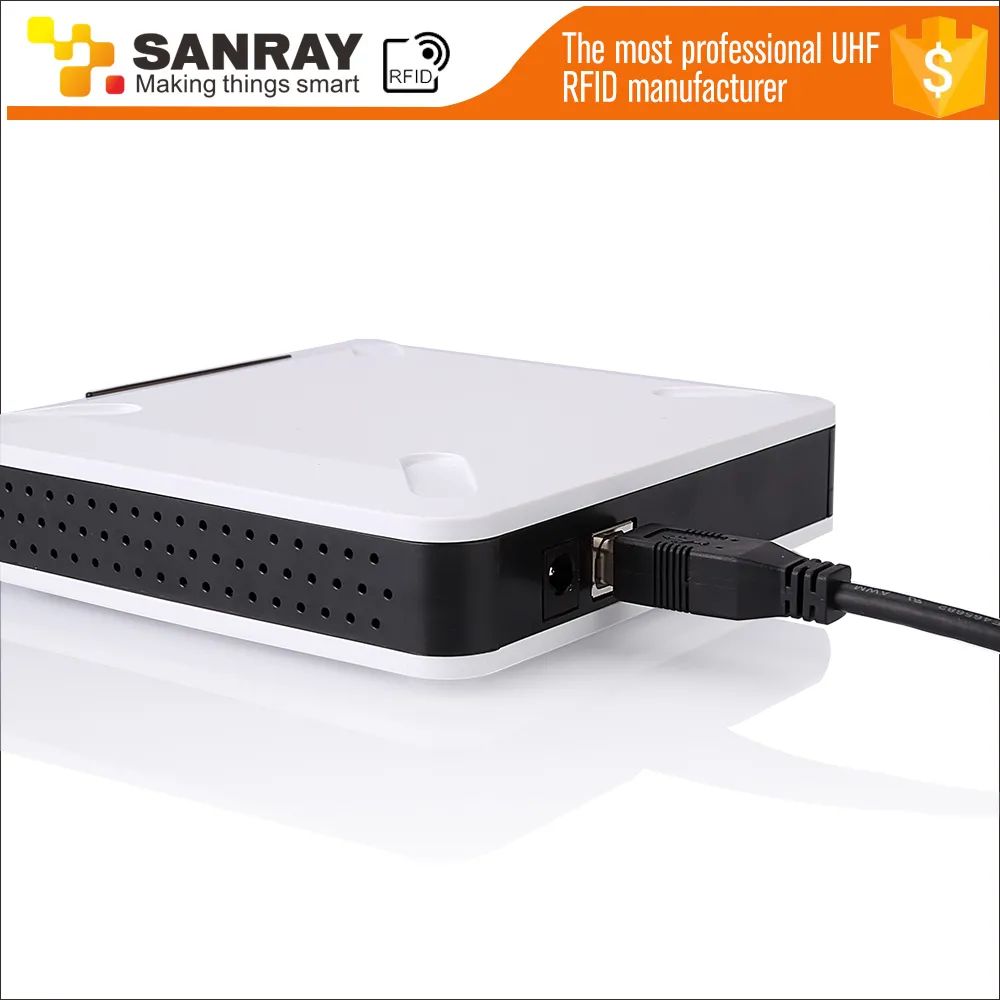

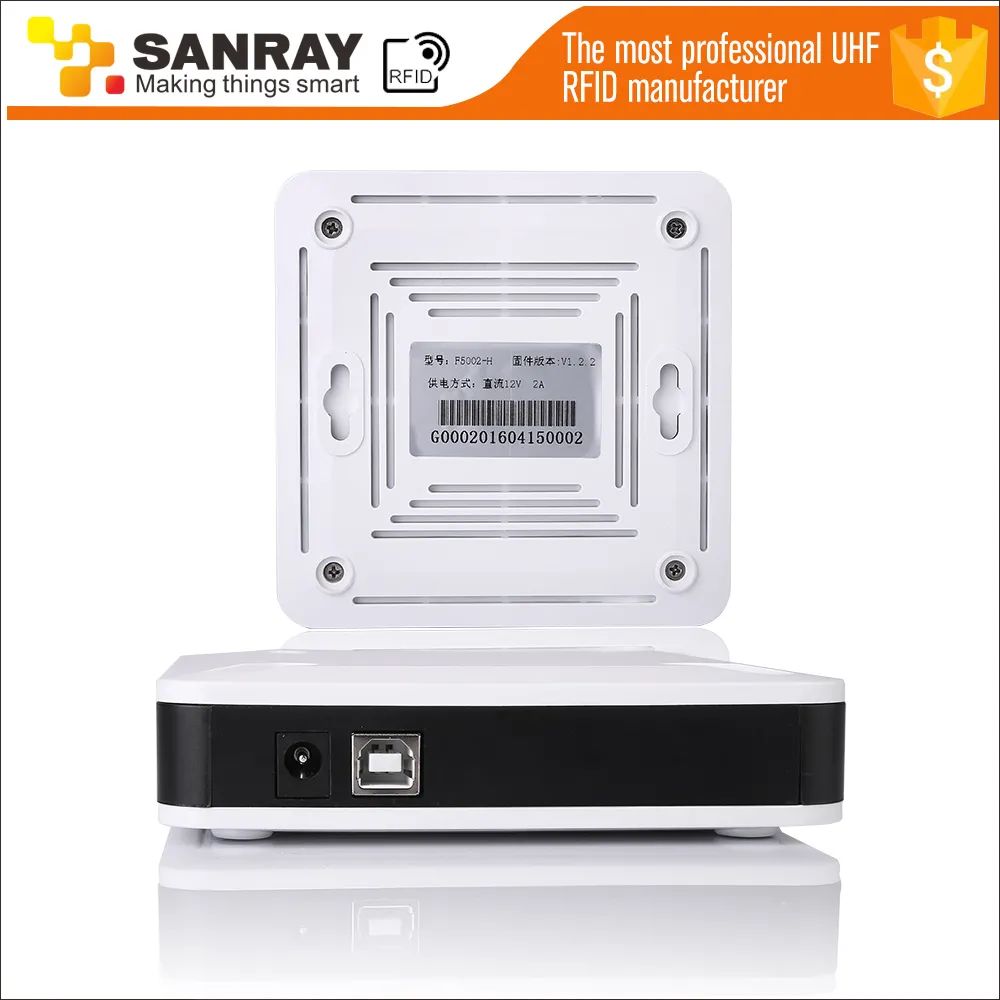

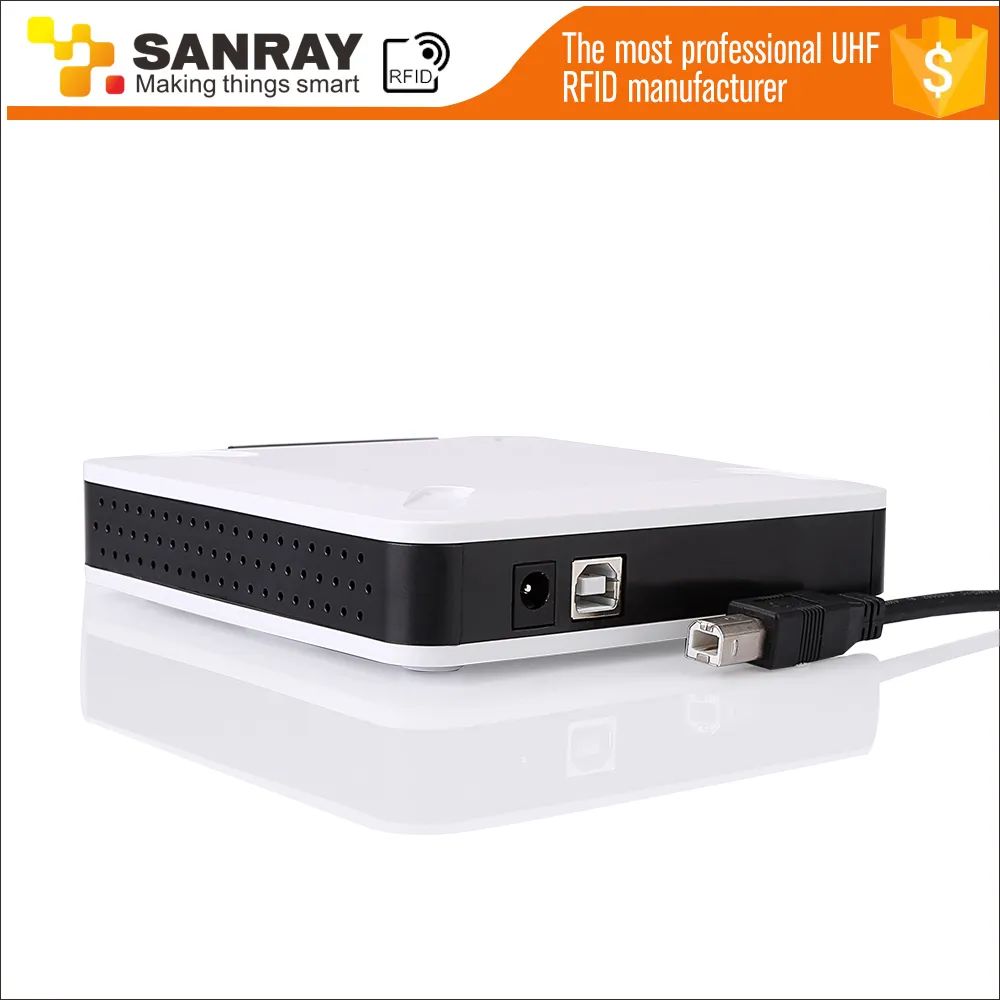

| 20 | Communication interface | Standard configuration: USB-B;
Optional: DB9; |
| 21 | Buzzer | Yes |
| 22 | Appearance size | 120mm*120mm*30mm |
| 23 | Weight (whole machine) | 0.18KG |
