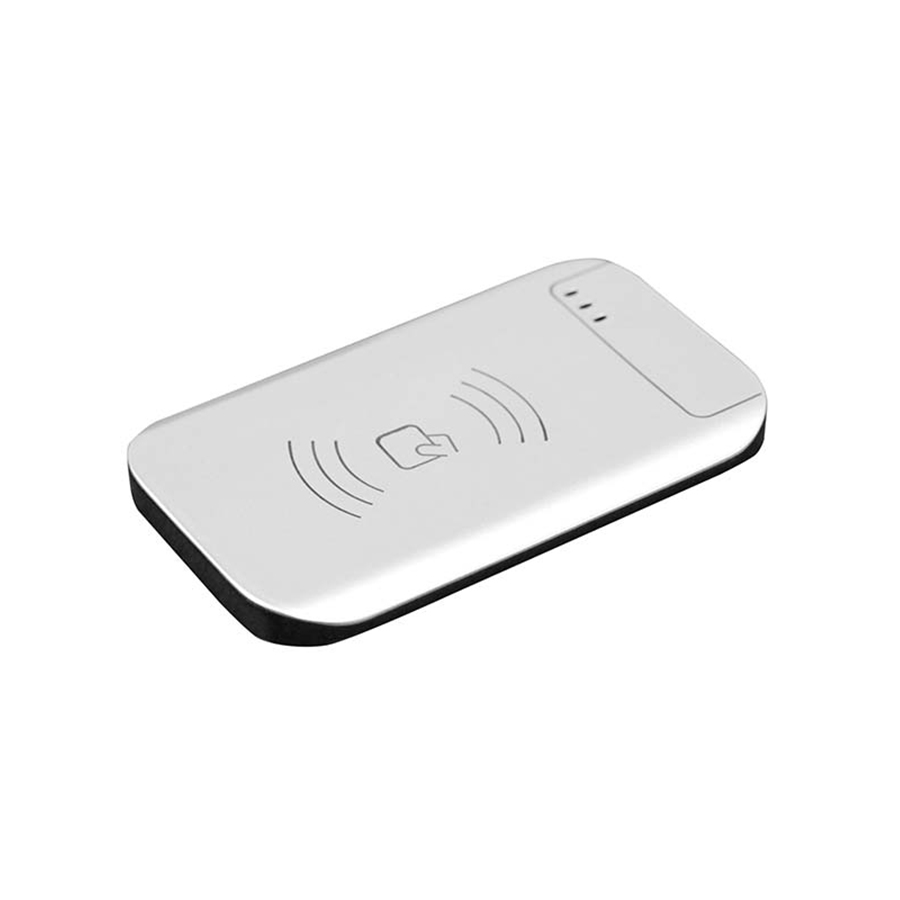

F5001 is a high-performance desktop UHF RFID reader product. It is designed with the UHF M2100 read-write module and near-field antenna developed by our company. F5001 uses MINI USB interface for communication and power supply. USB Keyboard/ Wiegand/2-way IO input/2-way IO output function (one of four choices, standard configuration is USB Keyboard), dual USB design, which can facilitate customers to realize virtual keyboard output in various formats, and the reading distance is 0~0.8 meters .
F5001 adopts plastic shell design, simple and beautiful appearance, small and light, durable, fast reading and writing speed, high accuracy, especially suitable for desktop application requirements.
| Serial number | Name | Parameters |
| 1 | Working Voltage | Powered by USB 5V/500mA |
| 2 | Operating temperature | -25℃～+65℃ |
| 3 | Working Humidity | 5%RH-95%RH (no condensation) |
| 4 | Storage temperature | -40℃～+85℃ |
| 5 | Label Agreement | EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
| 6 | Working frequency band | 840～960 MHz |
| 7 | Support work area | China 2, USA, Japan, Korea (customizable: China 1,Europe) |
| 8 | Output power | software adjustable, step interval 1.0dB, +5dBm-+25dBm |
| 9 | Output power flatness | ±0.2dB |
| 10 | Receiving Sensitivity | -62dBm |
| 11 | RF port standing wave | ≤1.5 |
| 12 | Reading distance | 0～0.8m (related to tag type, transmission power and application environment) |
| 13 | Writing distance | 0～0.2m (related to tag type, transmission power and application environment) |
| 14 | Interface communication rate | 115200bps |
| 15 | Operating temperature monitoring | Support |
| 16 | Antenna Type | Near Field Antenna |
| 17 | Communication interface | Standard configuration: MINI USB;
Optional: Wiegand; |
| 18 | Signal interface | Built-in two-way input and two-way output; |
| 19 | Buzzer | Yes |
| 20 | Design | Plastic box shell design |
| 21 | Appearance Dimensions | 130*82*11mm |
| 22 | weight | 0.09KG |
