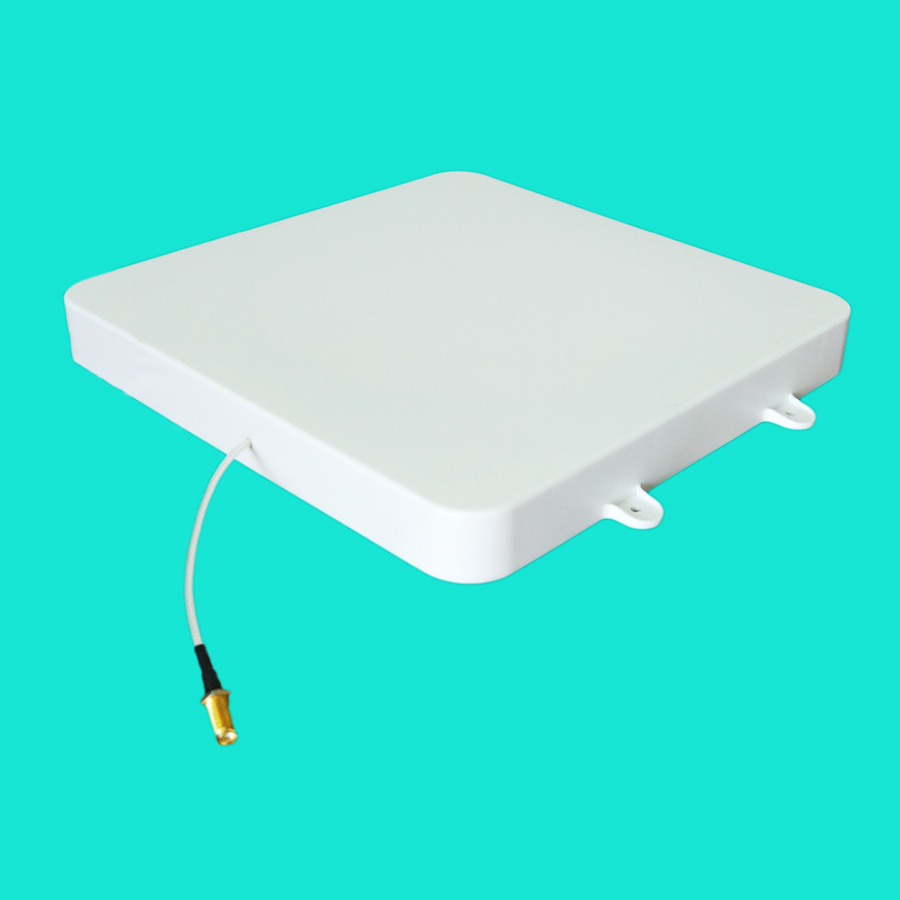

The 8dBi smart cabinet dedicated circular polarization antenna (220) is an antenna designed for unmanned retail and smart container applications. It has the characteristics of small size, thin thickness, high gain, wide wave speed, low VSWR, low axial ratio, etc. . It can be easily applied to UHF frequency band RFID occasions such as warehousing, logistics, assets, unmanned retail, and smart containers.
Gain versus frequency curve
Curve of axial ratio versus frequency
H plane two-dimensional pattern (horizontal lobe pattern)
E plane two-dimensional pattern (vertical lobe pattern)
Return loss S11 vs. frequency curve
Curve of voltage standing wave ratio VSWR versus frequency
| Frequency range (MHz) | 902MHz～928MHz |
| Polarization | Circular polarization |
| Gain (dBi) | ＞8dBi |
| Axial ratio (dB) | <3dB |
| H side HPBW | 68 degrees |
| E side HPBW | 68 degrees |
| Impedance (Ω) | 50Ω |
| Voltage standing wave ratio (VSWR) | ≤1.3:1 |
| Joint type | External thread female head |
| Joint location | Side feed |
| Product size (mm) | 220mm×220mm×24mm |
| weight | 450g |
| Material | Engineering plastic ABS |
| Color | milky white |
| Protection class | IP67 |
| Installation method | There are two mounting holes on both sides of the antenna (self-tapping screw installation) |
| Operating temperature (°C) | -40°C ～＋85°C |
