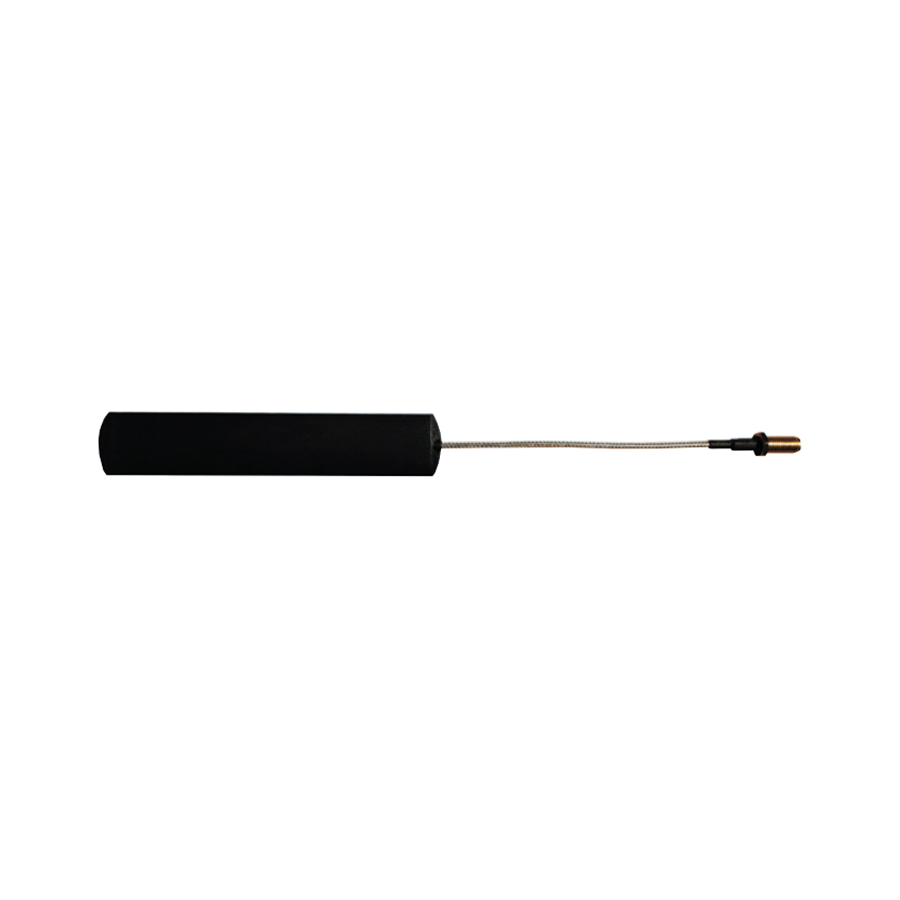

A4403 3DBI line-level omnidirectional antenna is suitable for applications such as UHF frequency band smart shelves, cabinet management, warehouse management, fixed asset management, and personnel access management. This product has the characteristics of omnidirectional, small size, high gain and low VSWR.
| Name | Specifications | Remarks |
| Frequency (MHZ) | 902-928 | |
| Gain (dBi) | 3 | |
| Polarization | Line leveling | |
| Impedance (Ω) | 50 | |
| SWR | ≤1.3:1 | |
| Joint type | SMA external thread inner hole | |
| Weight (kg) | 16g | |
| Dimensions (mm) | 115×22×6 | |
| Operating temperature | -40℃~+ 85℃ | |
| Material | ABS | |
| Installation method | 3M self-adhesive paste | |
| Color | Black |
